Virtual Super Orders - Head Contractors

Overview

From the VS Orders Page, authorised users can create and manage multiple order types, including:

• Concrete Orders - Create and send Concrete delivery orders.
• Concrete Test Orders –  Create and send Concrete Test Orders, which can be created individually or as a sub-order to an existing concrete order.
• General Item Orders – Create and send a General Order (labour, plant, material).

• Spoil Transport - Create and send Spoil Transport Orders.

  NOTE: At this stage, full spoil transport functionality is managed through Allocations. This will be merged into the Orders Page in a future release to provide full functionality.

Permissions

To access the Orders Page, a project user must have the VS Order Admin permission enabled.

Once enabled, the authorised user can view, create, and update orders, including updating orders that were created by another user.

• Project supervisors and engineers can only see orders that they have been assigned to. Their access is read-only.
• Suppliers can only see all orders for their company, however they can only Accept or Reject the order if they have been assigned as the order's contact.
• Supervisors, engineers and suppliers do not need the Order Admin permission to gain access.

Accessing the Orders Page

1. Open your project in the VS
2. Click the Menu icon (☰)
3. Select the Orders Page

You will see the order list, with the most recent displaying at the top of the page.

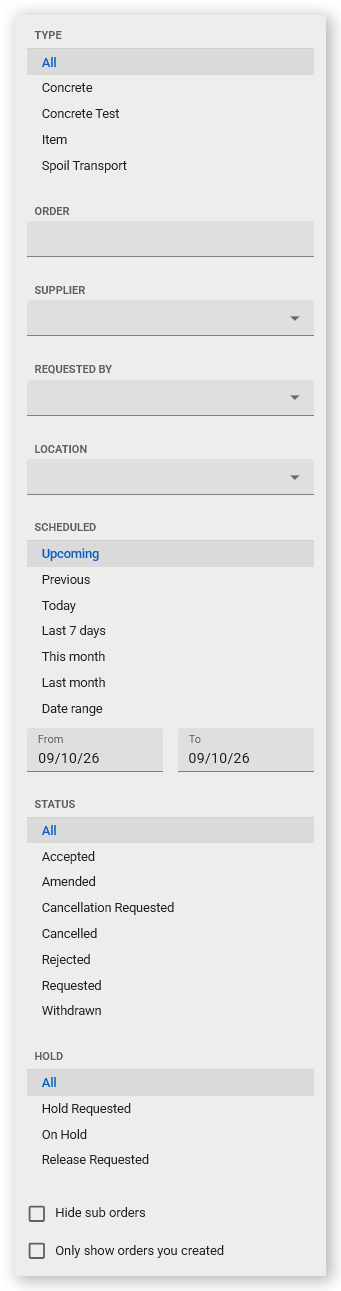

The Filter Panel is used to find and view specific orders, both current or historical.

Orders can be filtered by:

• Order number
• Supplier
• Date Range
• Type

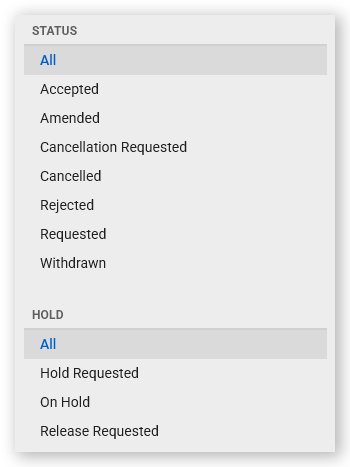

• Status

Additionally, the user can check the following selection boxes to:

• Show sub orders: Demonstrate where a concrete test has been generated as a sub-order to an existing concrete order.
• Only show orders you created: Only display the orders created by the you.

Using the Orders Page

From the Orders Page, authorised users can:

• Create orders which are automatically sent to the order's Supplier Contact(s), via email.
• View orders, including historical orders.
• Update existing order details (up until the date set for the work to commence).
• Track the order status from Requested to Accepted / Rejected / Amended / Withdrawn / Cancel Requested / Cancelled.

Creating a New Order

• Click the orange Create Order button.
• Select the order Type from the drop-down list:
  • Concrete Order – Create and send a concrete supply order.
  • Concrete Test – Create and send an individual concrete test order. A test can also be created as a sub-order which links it to an existing concrete order (see below).
  • Item Order – Create an order for any item code, such as labour, materials, or plant.
  • Spoil Transport Order – Coming soon. This will eventually replace the Allocations page.
• Enter the required details in the order form.

Item Order Example:

NOTES:

• Order forms can vary slightly depending on the Type of order.
• Fields marked with an asterisk (*) are compulsory.
• The Scheduled Time and Cost Code fields are compulsory for concrete orders.

• Once the Supplier is set, the Item menu will populate with the available Item Codes and Orderable Items for that supplier that match the type of order being created.

  Read the following article to understand more about Orderable Items.

• If a Default Supplier Contact is set, this field will auto fill once the supplier is set.
• Data in the Supervisor, Engineer, Cost Code and Location fields will populate in the respective VS Dockets.
• Custom fields can be requested by contacting support@virtualsuper.com.

When all details are complete, press Create to automatically send an order email to the supplier contact(s).

An email will automatically send to the creator and the supplier contacts any time an order is created or updated.

Unique Order Numbers

Order numbers are automatically generated based on the order type and will display in the Orders List:

• Concrete Orders: CO-XXXX
• Concrete Test Order: CTO-XXXX
• Item Orders: IO-XXXX
• Spoil Transport Orders: STO-XXXX

Order Numbers are referenced in the PO Number field at the top of electronic dockets, providing a direct link between orders and dockets generated in the VS.

Order Status and Actions

Once an order has been sent, it will display with a Requested label until the supplier either Accepts or Rejects it in their VS Supplier Portal. If the creator withdraws the order, it will display a Withdrawn label for both parties.

At any stage, the creator can Update the order details or withdraw it. The Update button is found in the top right corner of the order summary.

• Update – Orders can be edited at any stage before the entered start date. An Accepted order updates to Amended. Additionally, a Rejected or Withdrawn order can be reinstated, which sets it to Requested.
• Withdraw – Retract the order. This can only occur before the date/start time set in the order.
• Cancel Requested – If an Accepted order is cancelled its status updates to Cancel Requested. If an order is not accepted and is in a Requested or Amended state, the order status must be set to Withdrawn before it can be set to Cancelled.

If the order creator updates the order after it has been accepted, the order changes to Amended and the supplier will need to Accept it again.

After an order enters Cancel Requested or Cancelled state, no further actions are available for that order.

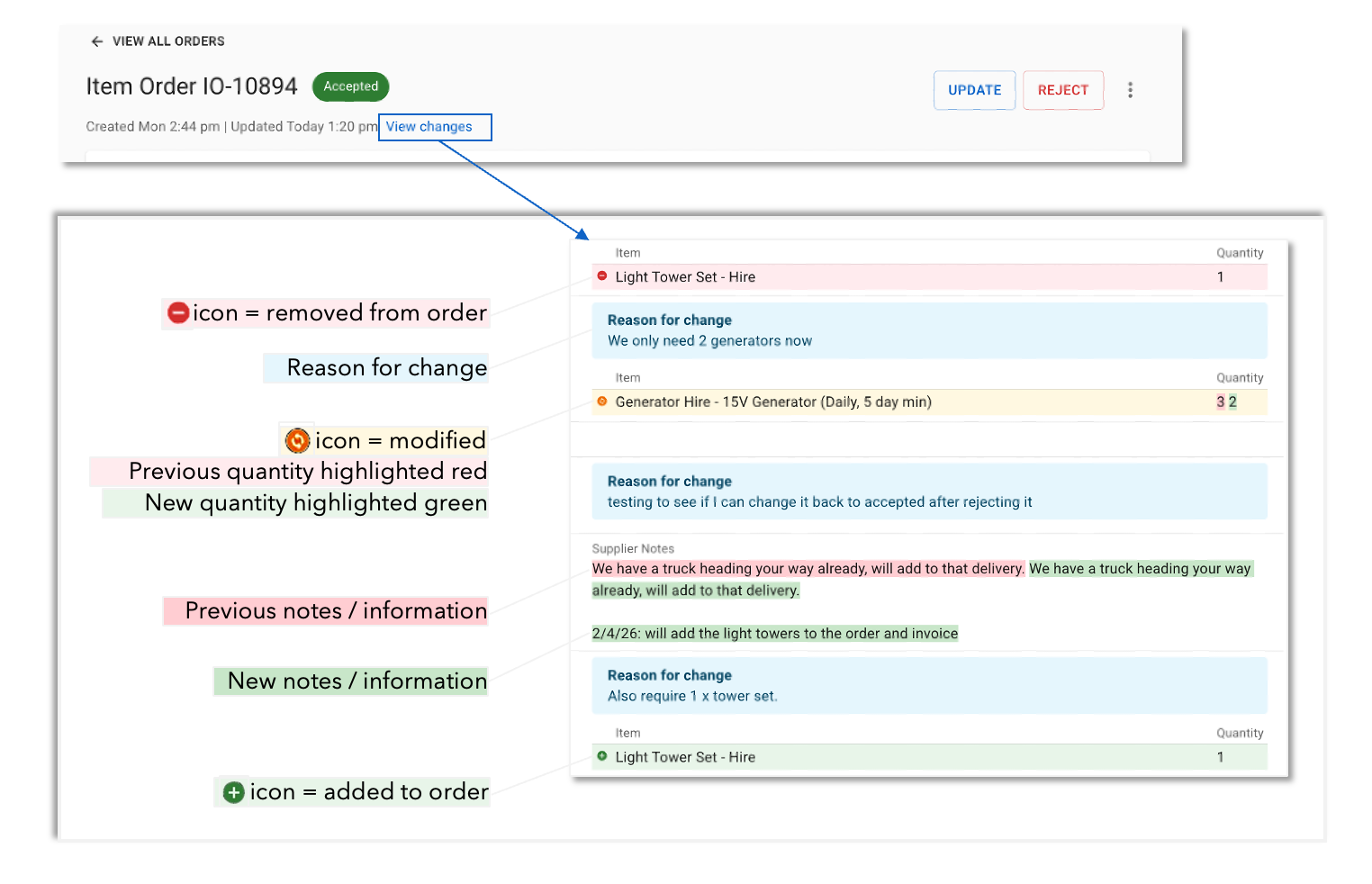

Once an order has been updated by either party, a View Changes button will display under the heading of the order summary. Clicking this opens the order history, where all updates can be viewed.

Concrete Test Sub-Orders

When viewing a concrete order form, the creator can click Order Concrete Test to generate a linked concrete test sub-order.

• The concrete test sub-order can be sent to the same supplier or a different supplier.
• The two orders will remain linked, for reference.
• Concrete orders with concrete sub-orders are indicated by a Link icon in the Orders List. Users can click on the link to view a sub-order summary dialog. Clicking on the dialog will open the concrete test order page to view the details.

• To display all sub-orders, tick Show Sub Orders in the filter panel.

More Order Actions -

From within an order form, the order creator can press the hamburger icon beside the Update / Withdraw buttons to perform a number or order actions.

1. Attach Files

Files can be added to any order by:

1. Clicking the hamburger icon (⋮) beside the order.
2. Selecting Attach files.
3. Uploading any file type (e.g., PDFs, images, spreadsheets).
• Images display as previews.
• PDFs open in a new tab.
• All other attachments will download to your computer.

NOTE: Suppliers who are assigned as the order's contact can also attach files.

2. Clone Order

Order details can be cloned to a new order by:

1. Clicking the hamburger icon (⋮) beside the order.
2. Selecting Clone order which will clone all of the details except - Scheduled Date, Scheduled Time, and if present, End Date and End Time.

3. Email to self

Email a summary of the order to yourself by:

1. Clicking the hamburger icon (⋮) beside the order.
2. Selecting Email to self.

NOTE: Users with a read-only view of an order are able to complete this action.

4. View History

View the history of the order by:

1. Clicking the hamburger icon (⋮) beside the order.
2. Selecting View history.
• A history dialog will display a timeline of the order from the newest action to the oldest action.

NOTE: Users with a read-only view of an order are able to complete this action.

Link Concrete Orders to Delivery Dockets

Where delivery dockets have been generated via an API, the VS will match the following values to link a concrete order to a delivery, if possible.

• VS concrete order number (CO-xxxx) - this number will then display at the top of the resulting docket in the PO field.
• Purchase order number.

Link Spoil Transport Orders to Material Movements

When a material movement is created, the Virtual Super will try to match it to a spoil transport order, allowing them to be visible from the spoil report.

The VS will look to match the following:

• Project
• Supplier
• Plant
• Movement time
• Order Type = spoil transport order
• If the order has been accepted and a truck/trucks assigned

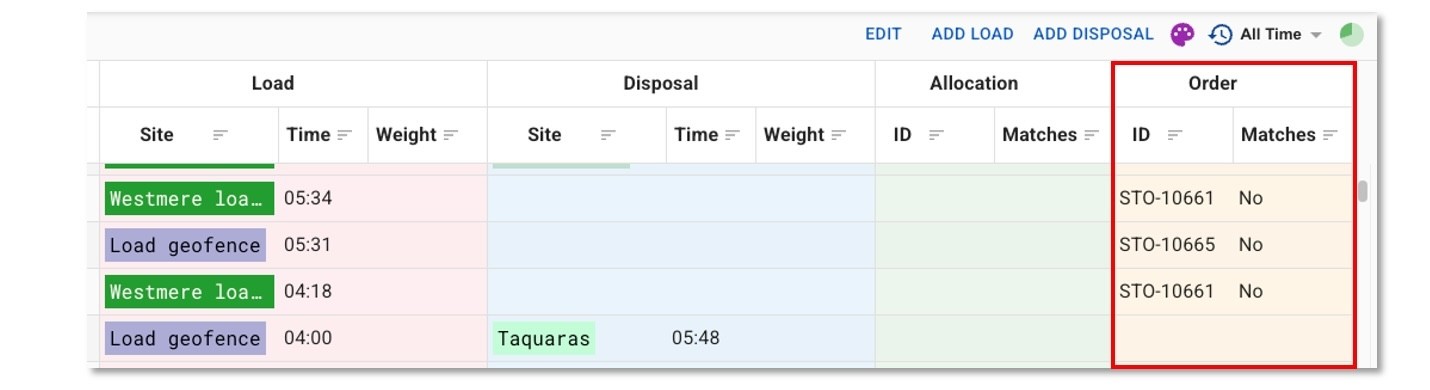

Once these have been linked, the Virtual Super will check the load site, disposal site and material matches the order. If any of these are missing on the movement, the Virtual Super assumes that they match and displays this under the Matches column (order section) of the spoil report.

Match Spoil Transport Orders to Material Movements

• Project
• Supplier
• Plant
• Movement time

Orders - Supplier Information

The following support article provides user instructions and details for suppliers. We recommend you provide them with this article link so that they are familiar with the orders workflow.
