Onboard Plant Equipment with a QR Code

You can assign a QR code to a machine to make it faster and easier for SafeSite users to onboard new equipment in the field.

Permissions

To access the Plant page (Menu > Plant) and view plant IDs, and to access the Users page (Menu > Users) and change SafeSite user permissions, you must have one of the following Virtual Superintendent permissions:

Admin Manager
User Admin

To onboard new plant using the SafeSite app, you must have the following SafeSite permission:

Superuser

Create a QR Code

Before you can onboard a machine using a QR code, you must create a QR code for the machine. Virtual Superintendent doesn't allow you to create a machine ID QR code, so you will need to use an external tool.

Open an online QR code generator, such as www.qr-code-generator.com.
Select the TEXT option.
Enter the Plant ID of the equipment being onboarded. You can find this by opening the Plant page (Menu > Plant) and then locating the plant equipment. The Plant ID is shown under the Plant ID column in the grid. Alternatively, you can click an item in the Plant page grid to open the Plant Details dialog and then find the ID near the top of the Configuration tab, under Plant ID / Rego No.
Generate the QR code and download it as an image file (or take a photo of it with your phone).

Click or tap to expand image
Print the QR code on a sticker or paper.
Attach or display the QR code on the machine where operators can easily scan it.

Grant Superuser Permission

Only SafeSite users with Superuser permissions can onboard plant equipment.

Note: Typically, a supervisor onboards new machines when they arrive on site. Alternatively, administrative staff can onboard machines when creating and printing QR codes.

To grant Superuser permissions:

Sign in to Virtual Superintendent.
Click Menu > Users. The Users page opens.
Click the SafeSite App Users tab in the top menu bar. A grid view opens, displaying all SafeSite users in your project and their permissions.

Click or tap to expand image
Locate the user account you want to edit. Use the Name filter in the top left corner to filter by username or the Email field to filter by email address.
Select the required SafeSite user account. The User Permissions dialog opens.

Click or tap to expand image
Enable the Superuser permission toggle. When a permission is enabled, its toggle button turns blue.
Click Save to update the user's permissions and close the dialog.

Onboard a Machine with SafeSite

After creating the QR code, link it to the machine record in SafeSite.

To onboard a machine using a QR code:

Open the SafeSite app and sign in.

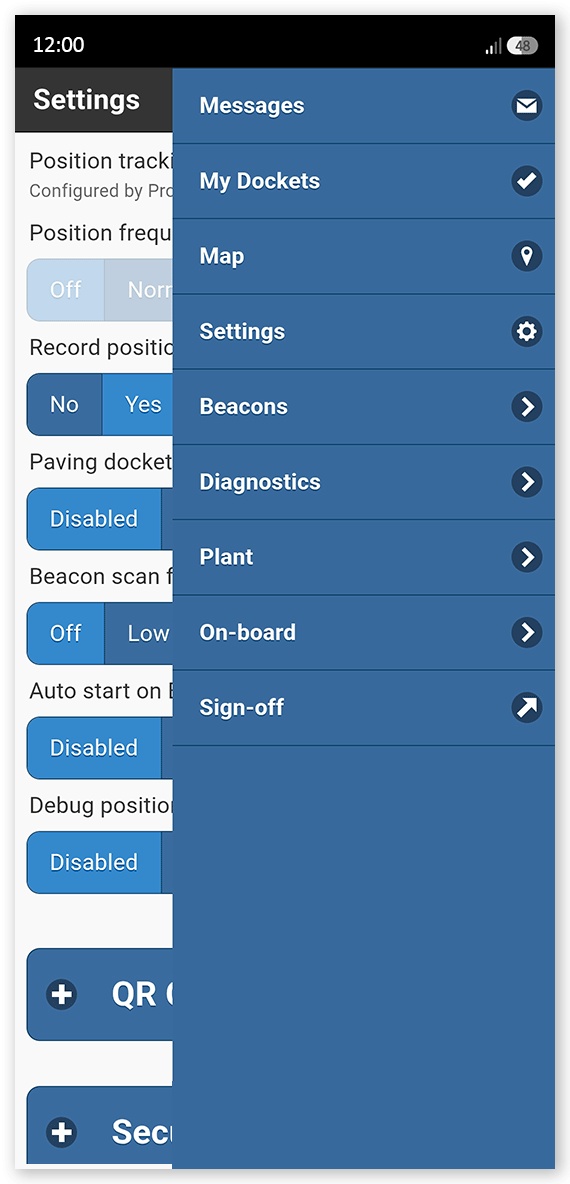

Tap Menu > On-board. The On-board screen opens.

Click or tap to expand image

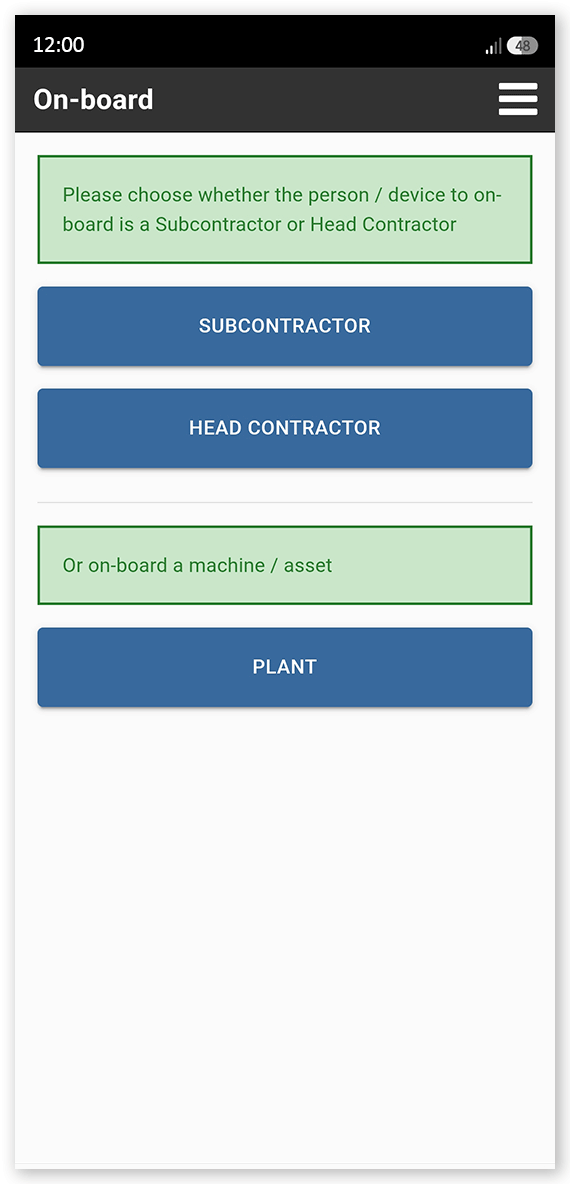

Tap PLANT.

Click or tap to expand image

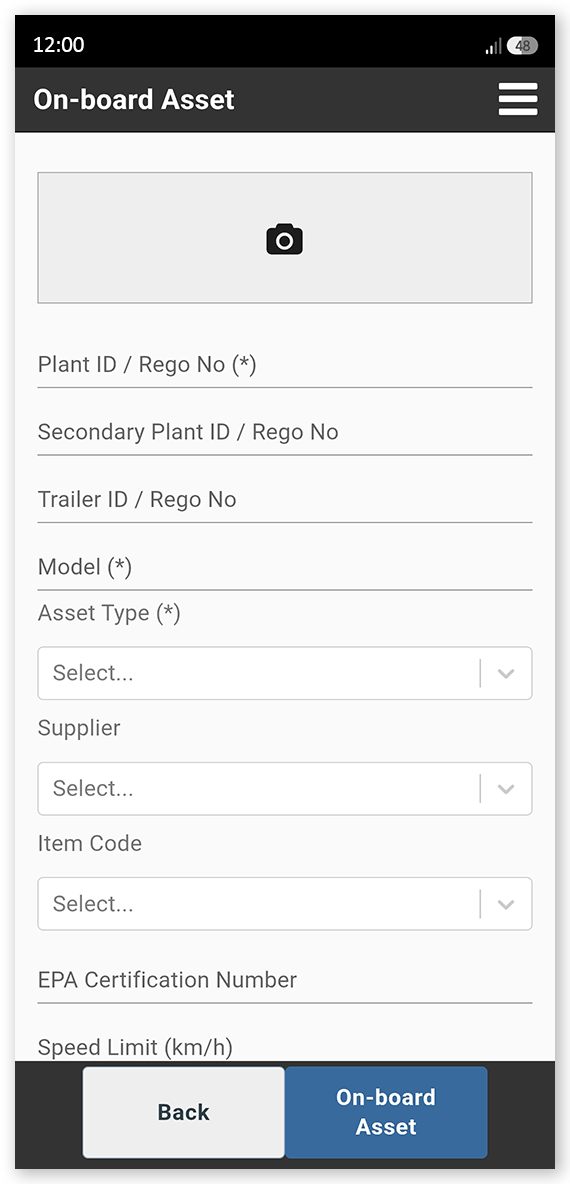

Tap the camera button and take a photo of the machine. This is required.

Click or tap to expand image
Enter the machine details (these fields are described below), making sure that the Plant ID you type into the Plant ID / Rego No field matches the Plant ID used in the QR code. The Asset Type, Model and Plant ID / Rego No fields are required.

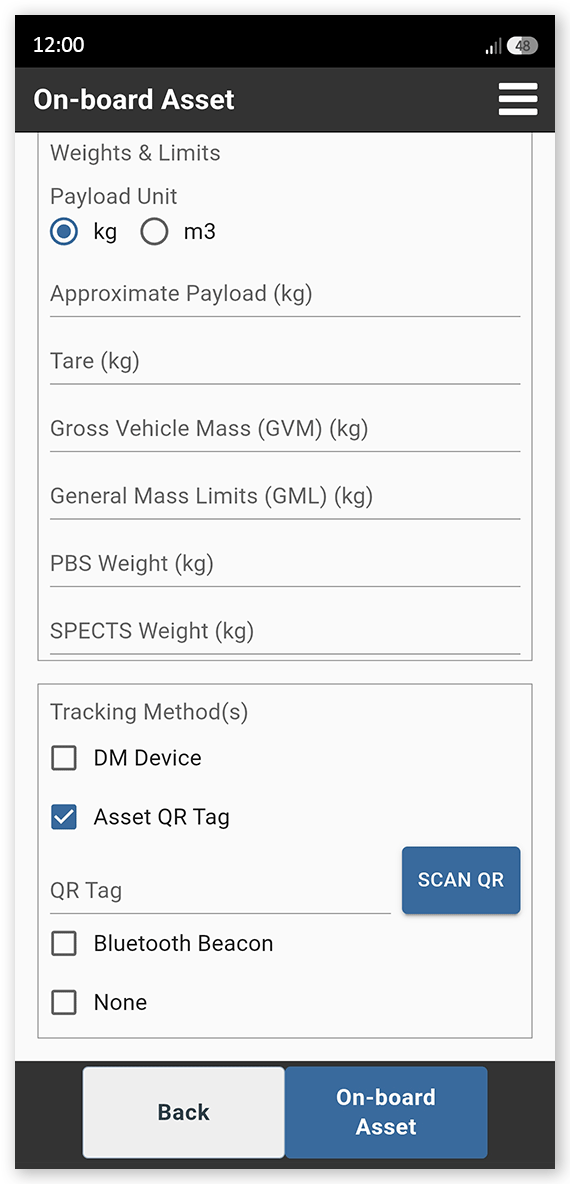

Select Asset QR Tag in the lower Tracking Method(s) section and then tap Scan QR and scan the QR code.

Click or tap to expand image
Tap On-board Asset. The machine is now onboarded.

Machine details

The On-board Asset screen includes the following fields:

Field	Description	Notes
Photo	Image of the machine	Should show identifying features such as tracking number, license plate, or model
Plant ID / Rego No	Unique identifier for the plant or registration number	Required; alpha-numeric; must be globally unique
Secondary Plant ID / Rego No	Unique secondary identifier for the plant or registration number	Alpha-numeric; must be globally unique
Trailer ID / Rego No	Trailer ID or registration number	Alpha-numeric; must be globally unique
Model	Model of the plant	Required; alpha-numeric
Asset Type	Role of the on-boarded plant	Required; must match an existing role; select a valid role from the dropdown
Supplier	The supplier hiring the machinery	If not listed, see the Suppliers Page help article
Item Code	Item being billed	Only available after a primary Supplier has been selected; select a valid item from the dropdown
EPA Certification Number	The EPA certification number of the vehicle	Alpha-numeric
Speed Limit (km/h)	Speed limit for the machine in km/h	Number; integer (no decimals); vehicle speeds above this value trigger speeding events in your reports and dashboards; typically used for on-site speeding events where there are no public roads
Current SMU	The current number of hours indicated on the machine's SMU (Service Meter Unit)	Number; integer (no decimals); SMU units track engine operating hours
Payload Unit	UOM for the approximate payload	Unit of measure; select kg or m3 from the dropdown
Approximate Payload	The approximate payload for the machine when an exact weight is unavailable using either a weighbridge or Virtual Weighbridge input	Number; integer (no decimals)
Tare	Weight of the machine when empty. Also known as the curb weight	Number; must be less than PBS, GML, GVM and SPECTS weight
Gross Vehicle Mass (GVM)	Maximum weight of the machine, in the specified units, when fully loaded. Typically determined by the manufacturer	Number; generally determined by the manufacturer
General Mass Limit (GML)	Maximum allowable loaded weight, in the specified units, for the machine when on road	Number; must be greater that Tare weight if used
PBS Weight	Allowable weight for the machine in kilograms if using the Performance Based Standard weight scheme	Number; machines that comply with the PBS scheme are given an extension to their GML weight in certain situations; PBS weight must not exceed GVM
SPECTS Weight	Safety, Productivity and Environment Construction Transport Scheme weight, in the specified units	Number; must be greater that Tare weight if used
Tracking Methods	Selection boxes to choose the tracking devices or types used on this machine	If prompted, enter the plant serial number or identification number.
